PRODUCT DESCRIPTION

Hik Micro Cheetah Night Vision Front Clip-On

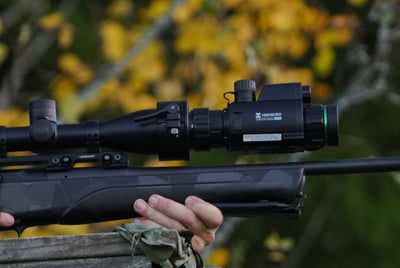

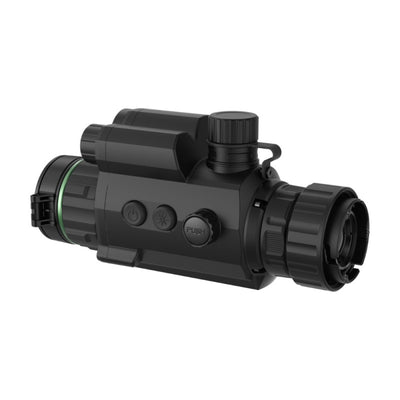

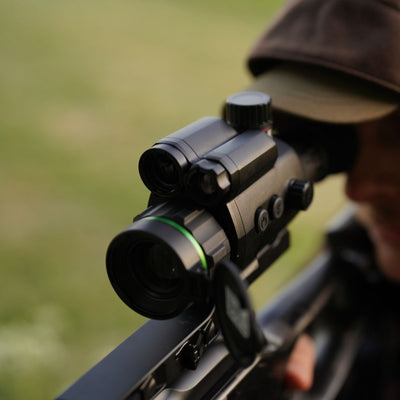

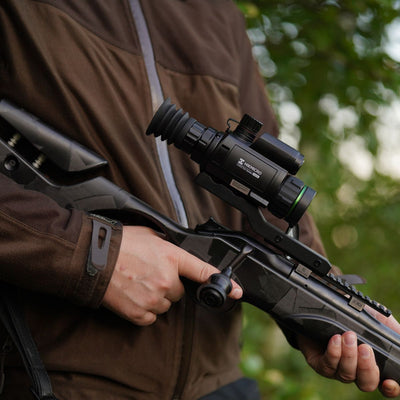

The Cheetah is a front-mounted digital night vision add-on that allows you to convert your conventional optical scope into a high-performance night vision riflescope. The Cheetah provides the perfect solution for shooters who want to maintain the uncompromising daytime performance of their optical scopes and then quickly convert to night vision for vermin control.

The Cheetah is capable of outstanding nighttime performance, drawing on all of HIKMICROs expertise in sensor technology and software design. The inbuilt IR delivers up to 400m of detection range in total darkness and delivers a crisp image to the HD OLED display.

The supplied adaptor clamps to the objective bell of your optical scope you create a stable and repeatable mounting point to quickly attach and remove the Cheetah unit.

Specifications

Model	C32F-R	C32F-RL
Max Resolution	2560 x 1440	2560 x 1440
IR Illuminator Wavelength	850nm	850nm
Lens (Focal Length)	32 mm, F1.2	32 mm, F1.2
Min. Focusing Range	3m	3m
Detection Range	400m (with IR 850nm ON)	400m (with IR 850nm ON)
Field of View	9.9° × 7.5°/17.3m x 13.1m @100m	9.9° × 7.5°/17.3m x 13.1m @100m
Magnification	1x	1x
Image Display
Display	1920 x 1080, 0.49-inch OLED	1920 x 1080, 0.49-inch OLED
Palettes	Day, Night, Green, Yellow, Auto, Defog	Day, Night, Green, Yellow, Auto, Defog
Exit Pupil	22mm	22mm
Eye Relief	10mm	10mm
Frame Frequency	25Hz	25Hz
General
Storage	Built-in EMMC (64 GB)	Built-in EMMC (64 GB)
Protection Level	IP67	IP67
Max Recoil	1000g/0.4ms	1000g/0.4ms
Dimensions	182.8mm x 70mm x 87.2mm (7.2 × 2.76× 3.43 inch)	182.8mm x 70mm x 87.2mm (7.2 × 2.76× 3.43 inch)
Weight	≤465 g without Eyepiece and Batteries	≤477 g without Eyepiece and Batteries
Features
Ballistic Calculation	No	Yes (When Switching to Scope Version)
Hotspot	Yes	Yes
Standy Mode	Yes	Yes
Record Video	On-board Video Recording (1920 x 1440)	On-board Video Recording (1920 x 1440)
Picture in Picture	No	No
Capture Snapshot	Yes	Yes
Recoil-Activation Recording	Yes	Yes
Power Supply
Battery Type	One Replaceable and Rechargeable Li-ion battery	One Replaceable and Rechargeable Li-ion battery
Battery Operating Time	≥5.5h (@25°C, with Hotspot, IR Emitter off)	≥5.5h (@25°C, with Hotspot, IR Emitter off)
Working Temperature/Humidty	-30°C to 55°C (-22°F to 131°F)	-30°C to 55°C (-22°F to 131°F)

***Night vision Scopes cannot be delivered to Republic of Ireland if they are to be mounted to a Firearm without relevant Restricted Firearms Certificate and can only be purchased to be used as a standalone handheld device due to Irish Night vision laws***

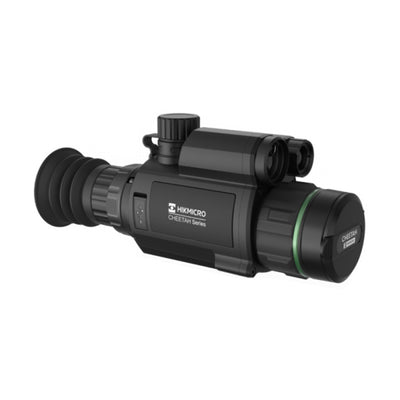

HIKMICRO Cheetah HM-C32F-SL LRF Night Vision Front Clip-on Scope Attachment
