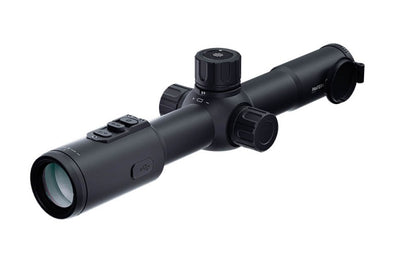

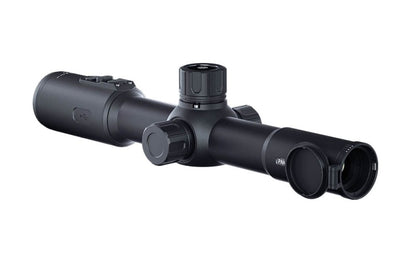

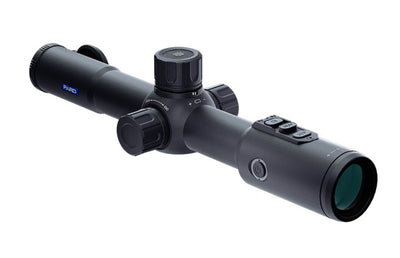

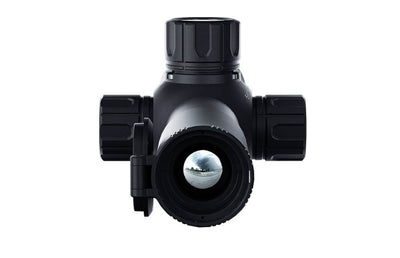

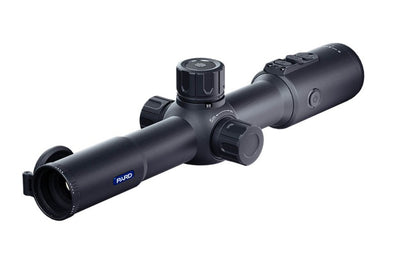

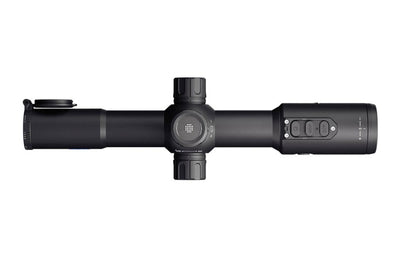

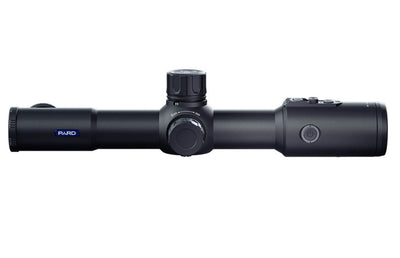

PARD PANTERA 256Q Thermal Scope (25mm Lens)

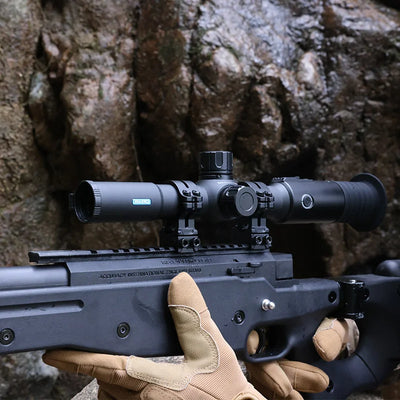

Designed to resemble a daytime scope, Pantera 256 Q is exceptionally
lightweight at 490g (with battery), offering portability and stealth
for wilderness tracking, and fits 30mm mount rings seamlessly.

SIDE FOCUS KNOB

The side focus knob provides an unobstructed view while rotating and ensures easy access. It allows smooth adjustments whether handheld or Picatinny-mounted, and remains easy to operate even with gloves.

ALTERNATE HIGH AND
LOW BUTTONS, EASY
TO TOUCH AND OPERATE

Crafted with keys of varying heights, preventing
accidental touches and ensuring precise
navigation even in the darkest of nights.

SHORTER DIOPTER ADJUSTMENT RANGE

Enabling faster and more precise focusing, adapting to different users and enhancing the experience
Whether for quick aiming or multiple users, it ensures a clearer view with greater efficiency.

BRAND NEW UI WITH BUILT-IN SCREEN RECORDING FUNCTION

The intuitive user interface allows users to observe targets while adjusting menu settings. And users have the capability to record the screen during operations, providing a seamleess and enhanced user experience.

With recoil-activated recording, a 20-second loop is continuously recorded, and upon detecting the recoil, the video file is stored on the embedded MultiMediaCard (eMMC).

NETD 25mK
EXCEPTIONAL SENSITIVITY

Capable of detecting minute temperature variations below
0.025°C, providing superior image details and allowing for
easier object identification.

5 IMAGE MODES

Pantera 256 Q features 5 different image modes (WT-HOT, BK-HOT, RD-HOT, IN-HOT, SKY), offering users the flexibility to select the mode that best highlights targets according to their needs.

18650 LI-ION BATTERY

A removable and rechargeable 18650 battery can swiftly serve as an energy supplement during power outages.

5 RETICLE SHAPES IN 4 COLOR

Pantera 256 Q features 5 reticle shapes in Red/White/Yellow/Green, tailored for diverse hunting scene and preferences.

Picture-in-Picture

Show a 2x centre area on the top of the screen for rapid target identification.

STANDBY MODE

Single press of the power key to swiftly awaken the device, reducing power drain and enhancing hunting efficiency.

ALUMINUM ALLOY BODY

Utilizing lightweight and high-strength aluminium alloy ensures excellent scratch and wear resistance, even in harsh conditions.

Pantera 256 Q

Sensor

Type: Uncooled VOx(vanadium oxide)

Resolution(pixel): 256*192

Pixel Size(µm): 12*12

NETD(mK): ≤25mK（0.025℃）

Frame Rate(Hz): 50

Detection Distance(m): 1200

Optics

Objective Lens(mm): 25

Optical Magnification(x): 3.6

Digital Zoom(x):: 2/4/6/8

Field of View (Horizontal): 7°

Field of View (Vertical): 5.3°

Field of View (Diagonal): 8.8°

Field of View (m @100m Horizontal): 12.3

Field of View (m @100m Vertical): 9.2

Focus Range: 5m-∞

Eye Relief(mm): 50

Diopter Adjustment(D): -5~+5

Display

Type: OLED

Resolution(pixel): 1024*768

Reticle Style: 5

Reticle Color: Red/White/Yellow/Green

Scene Mode: City/Rain/Forest

Image Mode: WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY

Photo / Video

Photo Resolution(pixel): 1024*768

Photo Format: .JPG

Video Resolution(pixel); 1024*768

Video Format: .mp4

Storage(GB): Built-in EMMC(32GB)

Image Engine: Pard IREA

Main Function

LRF: NO

Ballistic Calculator: NO

PIP: Yes

Hot Track:Yes

Gyroscope: Yes

Recoil-activated Recording: Yes

Loop Recording: Yes

E-compass: Yes

Shutter: Mechanical Shutter

Microphone: Yes

Firmware Upgrade: Yes

Connections

USB Type-C: Yes

HDMI Output: NO

WiFi:: Yes

Supported Apps: PardVision2

Power Supply

Battery Type: Lithium Ion 18650*1

Output Voltage(V): 3.7

Operating Time(h): ≤6

External Power Supply: Type-C

Environmental Characteristic

Protective Class: IP67

Operating Temp(℃/℉): -30 ~ +55 / -22 ~ +131

Recoil Resistance(J): 6000

Material

Housing: Aluminum Alloy

Objective Lens: All-glass multi-coated lens

Measurement

Product Dimension(L * W * H, mm): 295*82*70

N.W/pcs(with battery, g): 490

***Night vision Scopes cannot be delivered to Republic of Ireland if they are to be mounted to a Firearm without relevant Restricted Firearms Certificate and can only be purchased to be used as a standalone handheld device due to Irish Night vision laws***
