DETAILS

If Item is not currently in stock we aim to have it back in stock from the supplier within 3 working days of order being placed

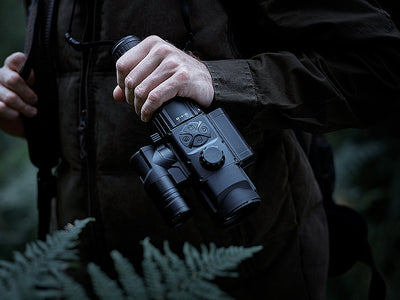

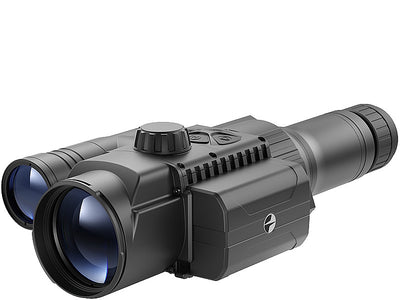

The Forward FN455 combines the Forward F455 Digital Front Attachment with a 5x30 Day Monocular which enables the Forward FN455 to be used as a hand-held digital night vision monocular.

The Pulsar Forward F455

The Forward F455 enables users to convert their day weapon scope into a highly accurate NV weapon scope. This inline front attachment quickly and easily attaches to most weapon scopes (using Cover Ring Adaptors) and forgoes the need for re-zeroing and retains a shooters natural position.

Equipped with an interchangeable eyesafe LED 940nm IR Illuminator, which offers quality long distance illumination for the already highly sensitive 1280x720 CMOS sensor, resulting in a night vision attachment with detailed image capturing.

Stream Vision and the B-Pack power system are also present on the Forward F455.

Please note:
The Forward FN455 is not compatible with the Pulsar RCC Wireless Remote.

In brief, the Forward Series features:

HD sensor
Enhanced night-time sensitivity
Detachable, long range, 940nm (invisible) LED IR illuminator (eyesafe)
Frost-Resistant HD AMOLED display
Focusable lens
Built-In HD photo & video recorder
16GB internal memory
Stream Vision compatible
High recoil-resistance (12-gauge, 9.3x64, .375H&H)
Instant Start-Up & “Display Off” mode
Auto-Shutdown
Easy install
Four-Point quick bayonet mounting system with automatic clamp
Point-of-Impact stability
Aiming Point Stability
SUMLight™
IPX7
Wide operating temperature (-25°C to 50°C)
Quick-Change, rechargeable IPS7 battery pack
MicroUSB port
Optimised for day scopes with a base magnification of 2.0-8.0x
Includes adaptors to mount to day scopes with a 42, 50 or 56mm objective lens
IPS Battery charger

The Pulsar 5x30 Monocular

The Pulsar 5x30 Monocular works as an attachment for the Forward F455. This increases the devices functionality by converting it into a handheld unit. The 5x30 Monocular can also work as a standalone device offering 5x magnification and crisp imagery making it suitable for a wide range of applications.

The Pulsar 5x30 Monocular Features/Specifications:

5x magnification
30mm lens diameter
7° field of view
3m minimum focus
18mm eye-relief
6mm exit pupil
±5 eyepiece adjustment, diopter
-30°C to +40°C operating temperature

Cover Ring Adaptors

The Forward FN455 can be attached to the front of your day scope using the FN Cover Ring Adaptors (available separately). Four locking points attach the unit to the front of day scopes and they are available in 42, 50 and 56mm, each adaptor comes with inserts to suit different size objective lens housings. Once installed on a dayscope they can remain in place for daytime shooting and come with an integrated lens cap. The F455 is optimised for dayscope magnifications between 2-8x.

Model	Product Code	Sensor	Magnification (Optimised for Dayscope)	F.O.V	Dimensions
Forward F455	PUL-78186	1280x720 CMOS	1.0x (2.0x - 8.0x)	6.3°	155x136x77mm
Forward FN455 Monocular	PUL-778196	1280x720 CMOS	1.0x (2.0x - 8.0x)	6.3°	155x136x79mm

Pulsar Forward FN455 (Monocular)
