Product Details

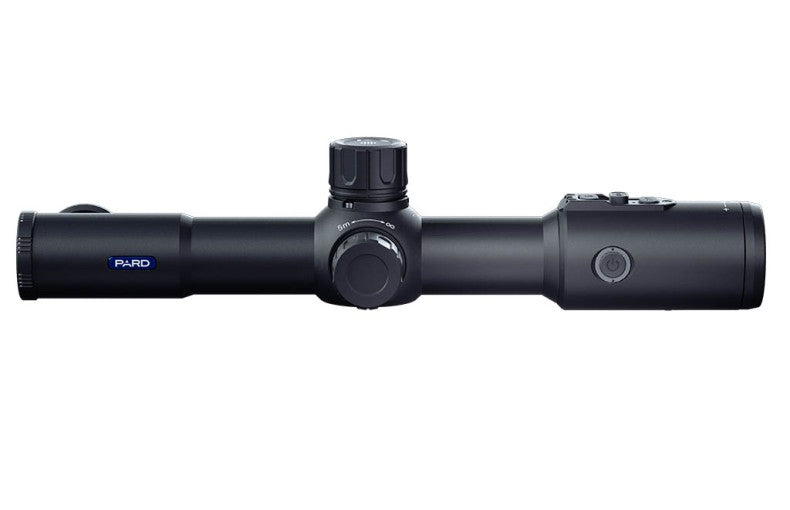

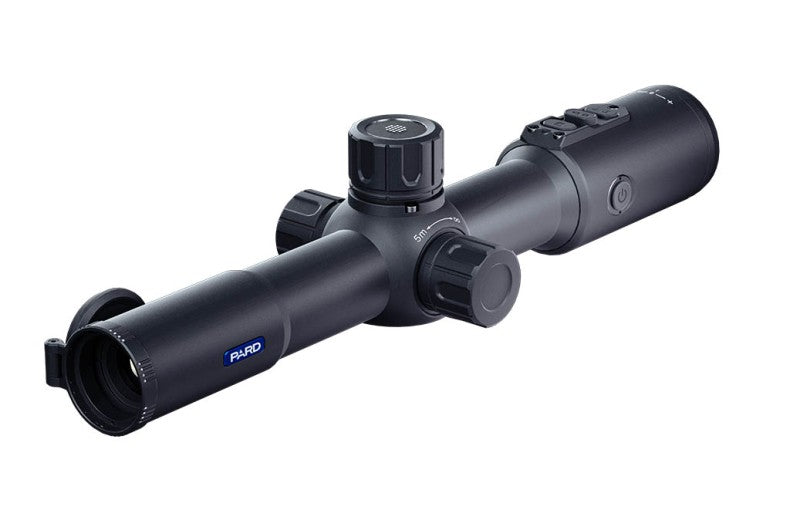

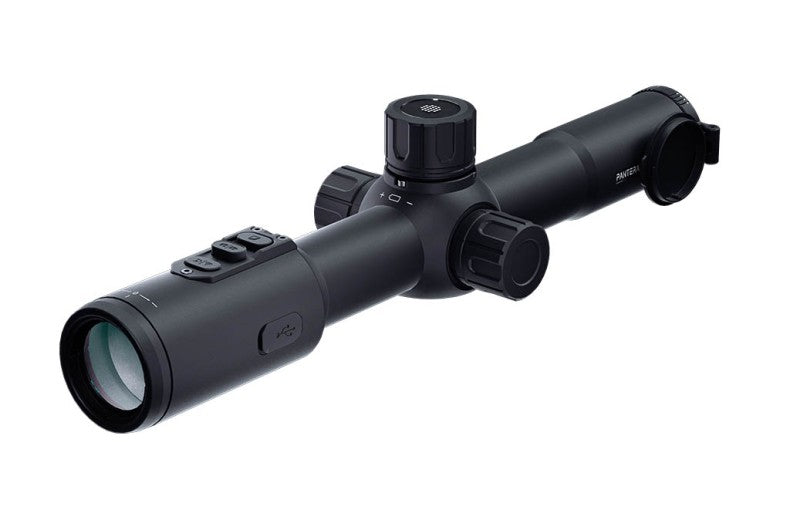

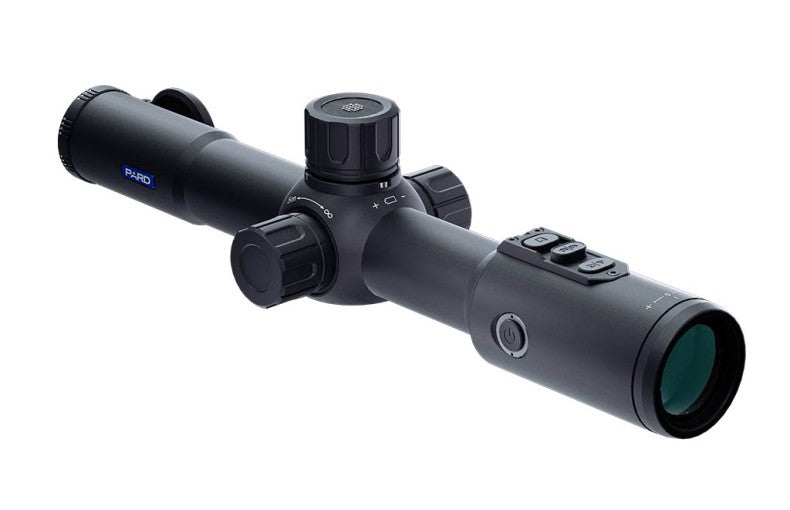

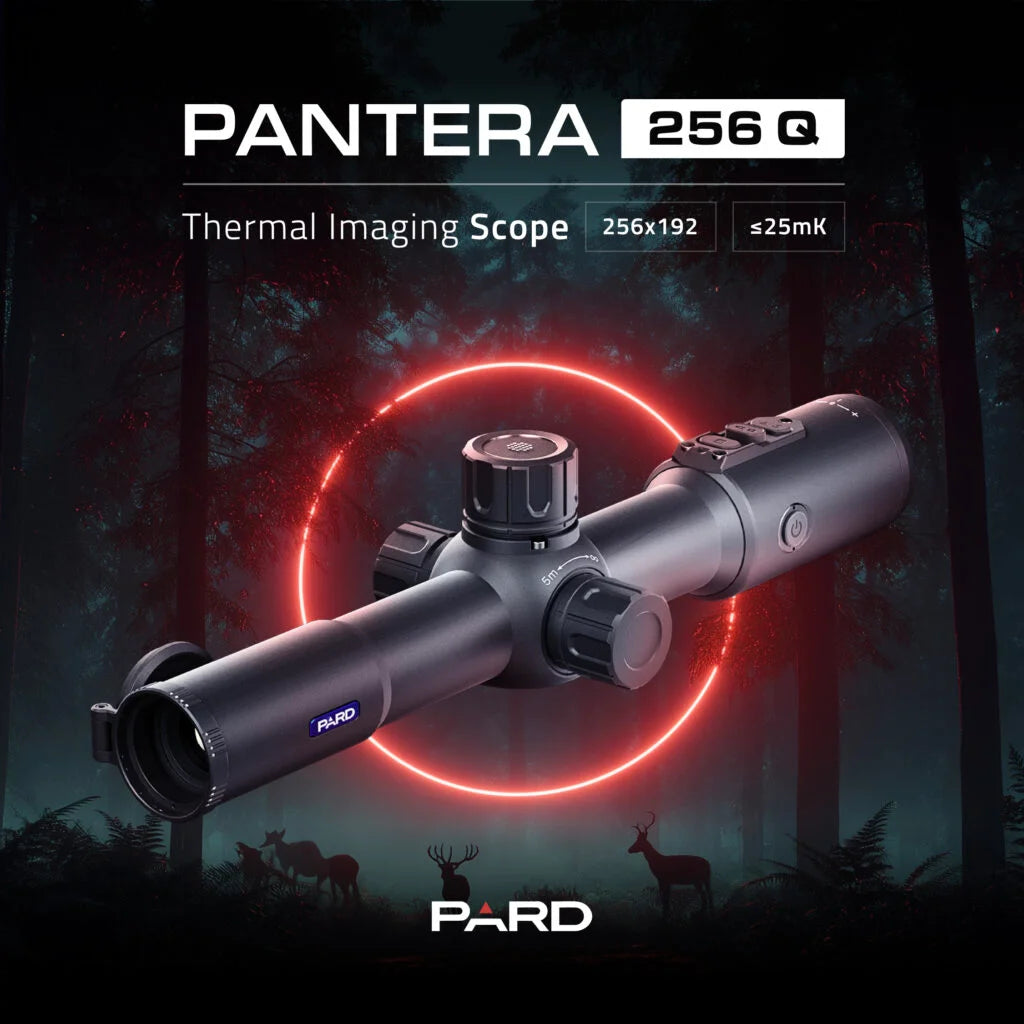

Designed to resemble a daytime scope, Pantera 256 Q is exceptionally
lightweight at 490g (with battery), offering portability and stealth

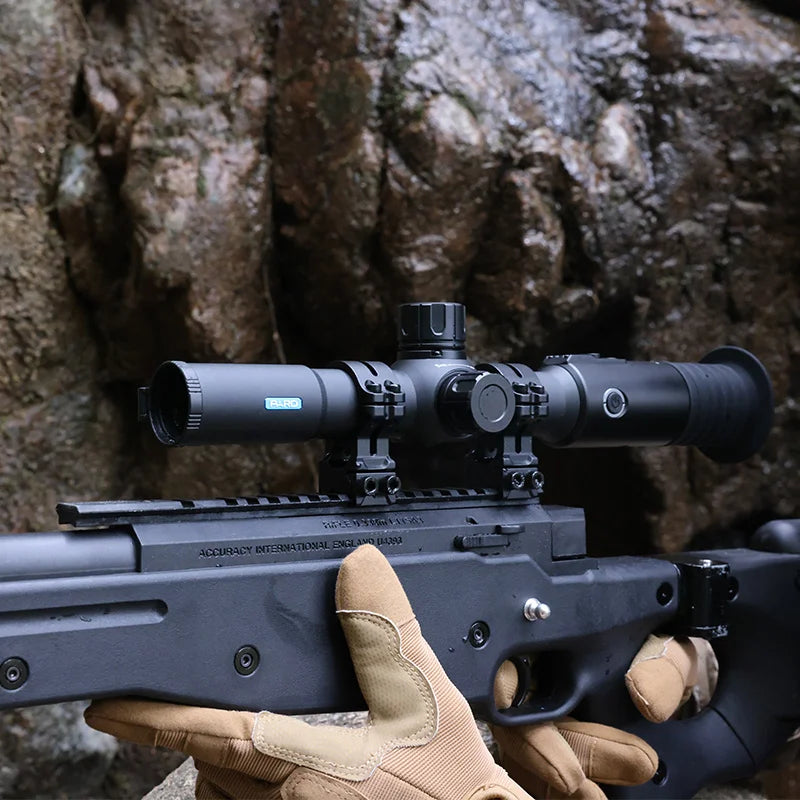

for wilderness tracking, and fits 30mm mount rings seamlessly.

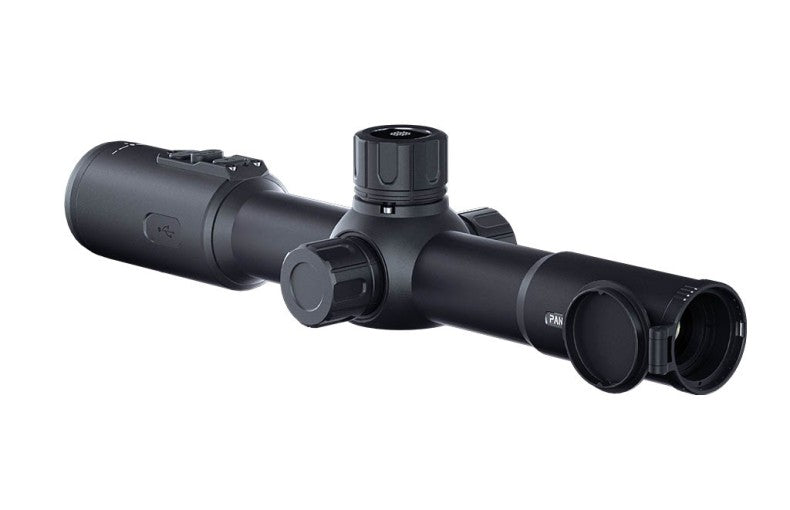

SIDE FOCUS KNOB
The side focus knob provides an unobstructed view while rotating and ensures easy access. It allows smooth adjustments whether handheld or Picatinny-mounted, and remains easy to operate even with gloves.

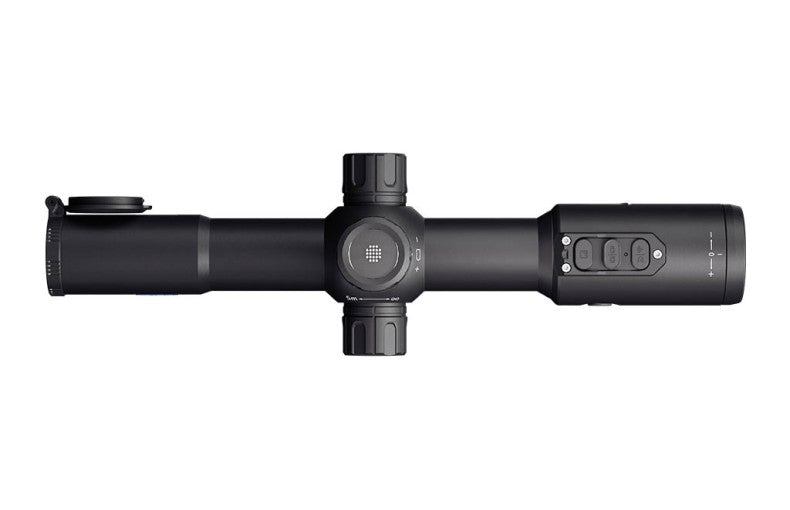

ALTERNATE HIGH AND
LOW BUTTONS, EASY
TO TOUCH AND OPERATE
Crafted with keys of varying heights, preventing
accidental touches and ensuring precise
navigation even in the darkest of nights.
SHORTER DIOPTER ADJUSTMENT RANGE
Enabling faster and more precise focusing, adapting to different users and enhancing the experience
Whether for quick aiming or multiple users, it ensures a clearer view with greater efficiency.
BRAND NEW UI WITH BUILT-IN SCREEN RECORDING FUNCTION
The intuitive user interface allows users to observe targets while adjusting menu settings. And users have the capability to record the screen during operations, providing a seamleess and enhanced user experience.
With recoil-activated recording, a 20-second loop is continuously recorded, and upon detecting the recoil, the video file is stored on the embedded MultiMediaCard (eMMC).
NETD 25mK
EXCEPTIONAL SENSITIVITY
Capable of detecting minute temperature variations below
0.025°C, providing superior image details and allowing for
easier object identification.
5 IMAGE MODES
Pantera 256 Q features 5 different image modes (WT-HOT, BK-HOT, RD-HOT, IN-HOT, SKY), offering users the flexibility to select the mode that best highlights targets according to their needs.
18650 LI-ION BATTERY
A removable&rechargeable 18650 battery can swiftly serve as an energy supplement during power outages.
5 RETICLE SHAPES IN 4 COLOR
Pantera 256 Q features 5 reticle shapes in Red/White/Yellow/Green, tailored for diverse hunting scene and preferences.
Picture-in-Picture
Show a 2x center area on the top of the screen for rapid target identification.
STANDBY MODE
Single press of the power key to swiftly awaken the device, reducing power drain and enhancing hunting efficiency.
ALUMINUM ALLOY BODY
Utilizing lightweight and high-strength aluminium alloy ensures excellent scratch and wear resistance, even in harsh conditions.
Pantera 256 Q
Sensor
Type: Uncooled VOx(vanadium oxide)
Resolution(pixel): 256*192
Pixel Size(µm): 12*12
NETD(mK): ≤25mK（0.025℃）
Frame Rate(Hz): 50
Detection Distance(m): 1200
Optics
Objective Lens(mm): 25
Optical Magnification(x): 3.6
Digital Zoom(x):: 2/4/6/8
Field of View (Horizontal): 7°
Field of View (Vertical): 5.3°
Field of View (Diagonal): 8.8°
Field of View (m @100m Horizontal): 12.3
Field of View (m @100m Vertical): 9.2
Focus Range: 5m-∞
Eye Relief(mm): 50
Diopter Adjustment(D): -5~+5
Display
Type: OLED
Resolution(pixel): 1024*768
Reticle Style: 5
Reticle Color: Red/White/Yellow/Green
Scene Mode: City/Rain/Forest
Image Mode: WT-HOT/BK-HOT/RD-HOT/IN-HOT/SKY
Photo / Video
Photo Resolution(pixel): 1024*768
Photo Format: .JPG
Video Resolution(pixel); 1024*768
Video Format: .mp4
Storage(GB): Built-in EMMC(32GB)
Image Engine: Pard IREA
Main Function
LRF: NO
Ballistic Calculator: NO
PIP: Yes
Hot Track:Yes
Gyroscope: Yes
Recoil-activated Recording: Yes
Loop Recording: Yes
E-compass: Yes
Shutter: Mechanical Shutter
Microphone: Yes
Firmware Upgrade: Yes
Connections
USB Type-C: Yes
HDMI Output: NO
WiFi:: Yes
Supported Apps: PardVision2
Power Supply
Battery Type: Lithium Ion 18650*1
Output Voltage(V): 3.7
Operating Time(h): ≤6
External Power Supply: Type-C
Environmental Characteristic
Protective Class: IP67
Operating Temp(℃/℉): -30 ~ +55 / -22 ~ +131
Recoil Resistance(J): 6000
Material
Housing: Aluminum Alloy
Objective Lens: All-glass multi-coated lens
Measurement
Product Dimension(L * W * H, mm): 295*82*70
N.W/pcs(with battery, g): 490
***Night vision Scopes cannot be delivered to Republic of Ireland if they are to be mounted to a Firearm without relevant Restricted Firearms Certificate and can only be purchased to be used as a standalone handheld device due to Irish Night vision laws***
